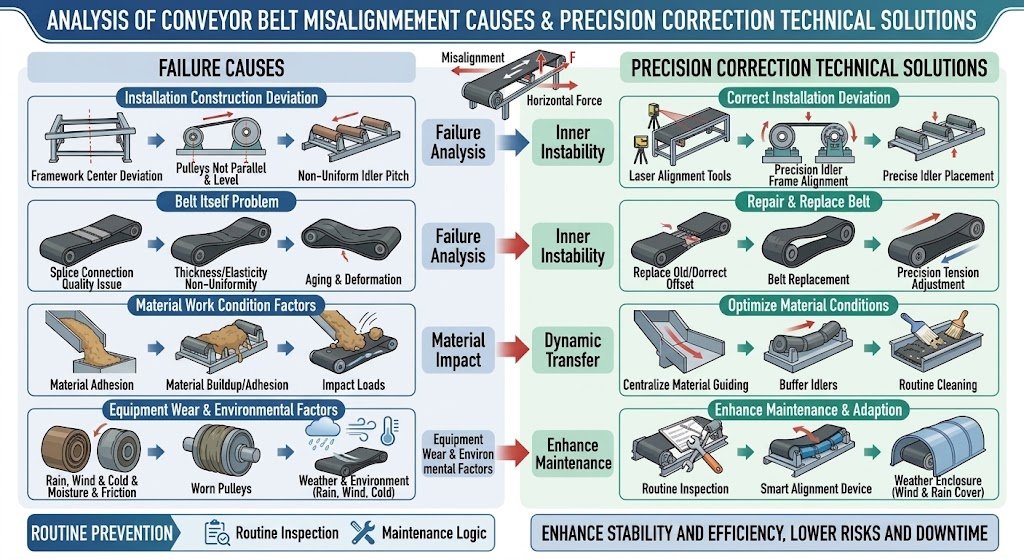

Analysis of the Causes of Belt Conveyor Misalignment and Exploration of Precision Correction Technical Solutions

        Belt conveyors are core equipment for bulk material handling in industries such as mining, building materials, chemical engineering, electric power, and port operations. Featuring continuous conveying, large capacity, low energy consumption, and high stability, they are a critical component of industrial automated conveying systems. During prolonged continuous operation, belt misalignment (or belt deviation) is the most frequent and typical fault encountered in belt conveyors. Misalignment not only causes edge wear, tearing, accelerated aging of the belt, and shortened equipment service life, but also leads to material spillage, reduced conveying efficiency, motor overload, and other issues. In severe cases, it can result in equipment shutdown and safety accidents, directly impacting the continuity and stability of the production line.

        Drawing on industrial field operating experience, this paper systematically analyzes the various core causes     of belt conveyor misalignment, and proposes targeted, precise, and practically implementable correction solutions as well as routine preventive measures, providing technical references for industrial belt conveyor operation and maintenance, fault diagnosis, and equipment optimization.

I. Core Principle of Belt Conveyor Misalignment

        The fundamental condition for normal operation of a belt conveyor is that the net lateral force acting on the         belt is zero, and the belt centerline remains aligned with the frame centerline. In essence, the root cause of belt misalignment is an imbalance in the lateral forces on the belt. When differences arise in tension, friction, and supporting forces on the two sides of the belt, the belt will shift toward the side with greater force or stronger friction, and this deviation trend will gradually intensify over operating time, resulting in persistent misalignment faults.

        In actual field conditions, misalignment is rarely caused by a single factor; it is more often the result of multiple superimposed factors such as installation deviations, equipment wear, material handling conditions, and environmental interference. Therefore, targeted and precise diagnosis is required, with solutions tailored to specific root causes.

II. Categorized Analysis of the Main Causes of Belt Conveyor Misalignment

    1. Installation and Construction Deviations: Inherent Misalignment Hazards

        Substandard installation accuracy is the primary cause of misalignment during the initial commissioning phase of a belt conveyor. This constitutes a structural, inherent issue and is the most fundamental fault trigger.

        (1).Frame installation deviation: Longitudinal centerline offset of the conveyor frame, frame distortion, and uneven heights between the front and rear frames can directly lead to misalignment of idler and roller mounting references. During operation, the supporting heights on both sides of the belt become inconsistent, resulting in imbalanced forces and consequent misalignment.

        (2).Non-standard roller installation: If the axes of the drive pulley and bend pulley are not perpendicular to the frame centerline, or if the height deviation between the two ends of a roller exceeds tolerance, the belt will experience uneven lateral force distribution during wrapping operation, causing one-way persistent    misalignment. Meanwhile, roller centerline offset also leads to unbalanced belt tension distribution, further aggravating the deviation.

        (3).Misaligned idler installation: Uneven spacing between idler sets, tilting of individual idlers on one side, or inconsistent heights prevent uniform support for the belt. As a result, the belt continuously swings left and right during operation, giving rise to intermittent misalignment.

    2.Belt-Related Issues: Imbalance in the Flexible Conveying Component

        As a flexible conveying component, abnormal performance or condition of the belt itself is a significant cause of misalignment, commonly observed after prolonged operation or belt aging.

        (1).Belt quality and splicing defects: Substandard manufacturing quality—such as inconsistent thickness, elasticity, or hardness between the two sides—results in different elongation rates during operation. Uneven belt joints, misaligned splice centerlines, or skewed splices cause uneven circumferential tension distribution, leading to continuous deviation to one side during operation.

        (2).Belt aging and deformation: Long-term loaded operation, exposure to sunlight and rain, and material abrasion can cause localized aging, slackening, and deformation of the belt. One-sided slackening or edge wear compromises the overall balance of the belt, resulting in irregular misalignment.

        (3).Uneven belt tension: Improper adjustment of the tensioning device leads to inconsistent tension on the left and right sides of the belt. An overly slack side is prone to shifting and swinging, while an overly tight side generates excessive friction, creating a force differential that triggers misalignment.

    3.Material Handling Factors: Dynamic Operational Interference Triggers

        Unstable material conveying conditions are the most common cause of misalignment in field operations. This type of misalignment is often intermittent and sudden, and is easily overlooked.

        (1).Eccentric material loading: An offset feed port position or a skewed chute prevents material from landing at the belt centerline. Material accumulates on one side over time, making the load weight on that side greater than the other, and the belt shifts toward the heavier side due to gravitational imbalance.

        (2).Inconsistent material moisture and particle size: Moist materials tend to adhere to the belt, idlers, and  roller surfaces, causing localized buildup and scaling that create an uneven supporting surface. Inconsistent particle sizes or concentrated accumulation of large lumps on one side can instantly disrupt the belt's force balance, resulting in instantaneous misalignment.

        (3).Material impact deflection: Excessive feed drop height generates lateral impact forces as material falls,   pushing the belt to one side. Prolonged impact can gradually form a fixed misalignment tendency.

    4.Equipment Wear and Environmental Factors: Acquired Operational Fault Triggers

        Long-term operational wear and complex site environments progressively degrade the balance state of the belt conveyor and induce misalignment faults.

        (1).Component wear and jamming: Damaged, jammed, or malfunctioning idler bearings—where idlers on one side fail to rotate or rotate with delay—increase the friction differential between the two sides of the belt, causing deviation toward the side with greater friction. Localized surface wear, scaling, or corrosion on rollers creates uneven surface roughness, further exacerbating force imbalance.

        (2).Environmental interference: In outdoor, dusty, or rainy conditions, dust, sand, and mud adhere to equipment components, resulting in uneven running resistance. Strong winds can exert lateral thrust on an empty belt, triggering misalignment. Low-temperature environments cause belt hardening, reduced elasticity, and compromised flexibility, significantly increasing the probability of deviation.

III. Targeted Correction Technical Solutions

        Based on the above causes of misalignment, and following the troubleshooting principle of "simple before complex, dynamic before static, adjustment before replacement," this paper proposes targeted and practically implementable correction solutions suitable for different operating conditions and misalignment fault types.

    1. Correcting Installation Deviations and Restoring Equipment Reference

        For inherent misalignment caused by improper installation, the core approach is to reset the equipment reference and ensure the coaxiality and levelness of the frame, rollers, and idlers.

        (1).Frame correction: Use a laser alignment instrument to re-check the longitudinal centerline of the frame.  Adjust, reinforce, and level any distorted, offset, or uneven frames to ensure the entire frame is level and straight, eliminating fundamental deviations.

        (2).Precision roller leveling: Adjust the mounting positions of the drive pulley and bend pulley to ensure that the roller axes are perpendicular to the frame centerline and that both ends are level. For one-sided misalignment, fine-tune the roller bearing housing positions by making minor adjustments in the opposite direction of the deviation to offset the lateral force differential and achieve belt centering.

        (3).Idler alignment and adjustment: Uniformly correct the mounting positions of all idler sets to ensure idlers are level and evenly spaced. Promptly adjust, tighten, and replace damaged idlers that are tilted or misaligned vertically to guarantee uniform support along the entire belt path.

    2.Repairing or Replacing the Belt and Balancing Tension Conditions

        For misalignment caused by belt defects or uneven tension, the focus is on optimizing belt condition and balancing circumferential tension.

        (1).Belt inspection and replacement: Re-cut and re-splice belts with skewed or misaligned joints to ensure smooth splices and aligned centerlines. Promptly replace aging, deformed, or severely edge-worn belts with high-quality belts featuring uniform elasticity and thickness on both sides, eliminating uneven force distribution at the source.

        (2).Precise tension adjustment: Use the tensioning device to symmetrically adjust belt tension, ensuring      consistent tension on both the left and right sides to avoid one-sided slackness or overtightening. Dynamically fine-tune tension according to load conditions to maintain balanced belt tension under both no-load and full-load states, preventing tension-induced misalignment.

    3.Optimizing Material Handling Conditions and Eliminating Dynamic Interference

        For misalignment caused by eccentric loading, impact, or material buildup, achieve dynamic correction by optimizing the feed structure and regulating material conditions.

        (1).Correcting the feed center: Adjust the position and angle of the feed chute and guide chute, and install  centering flow-guide devices to ensure that material falls precisely on the belt centerline, preventing one-sided stockpiling. Optimize the sealing structure of the guide chute to reduce material spillage and deviation.

        (2).Buffer and impact reduction modifications: For feed points with excessive drop height, install buffer idlers and buffer baffles to reduce lateral impact forces from falling material and prevent instantaneous belt deviation. Promptly remove moist material buildup and scaling adhering to the belt, idlers, and roller surfaces to maintain a smooth and uniform running contact surface.

        (3).Regulating material conditions: Strictly control material particle size to avoid concentrated conveying of oversized lumps, reduce unilateral load impact, and stabilize the belt's operational balance.

    4. Strengthening Equipment Operation and Maintenance and Adapting to Environmental Conditions

        For misalignment caused by equipment wear and environmental interference, focus on routine maintenance and equipment modifications to enhance operational stability.

        (1).Regular component inspection and replacement: During routine inspections, promptly replace jammed, damaged, or abnormally noisy idlers and bearings. Regularly clean roller buildup and grind rusted or worn areas to ensure all rotating components operate smoothly with uniform resistance.

        (2).Installing intelligent correction devices: For belt conveyors with frequent misalignment or complex      operating conditions, install fully automatic hydraulic correction units and self-aligning idler sets. These devices can automatically sense belt deviation and make real-time adjustments, enabling dynamic intelligent      correction and significantly reducing the probability of misalignment faults.

        (3).Environmental adaptation modifications: Install rainproof, windproof, and dustproof protective      covers for outdoor equipment to minimize interference from wind, rain, and dust. For low-temperature environments, select cold-resistant belts to avoid hardening and deformation, ensuring adaptability to complex site conditions.

IV. Recommendations for Routine Prevention and Operation & Maintenance Optimization

        Misalignment faults in belt conveyors are best addressed through prevention, with routine maintenance being the most valuable approach. Compared with corrective actions after a fault occurs, proactive prevention can significantly reduce equipment failure rates and maintenance costs. First, establish a regular inspection system that focuses on checking belt centering status, component wear, material loading position, and tension condition, enabling early detection and fine-tuning. Second, after equipment overhaul or belt replacement, centering calibration tests must be performed, and no-load trial operation must be verified before transitioning to full-load operation. Third, for special operating conditions, optimize equipment structural design by installing flow-guide, buffer, and auxiliary correction devices to enhance the belt's inherent resistance to misalignment from a hardware perspective. Fourth, standardize operator procedures to avoid overloading and eccentric loading, reducing misalignment caused by human-induced operational deviations.

V. Conclusion

        Belt conveyor misalignment is the result of multiple interacting factors, with the core essence being an imbalance in lateral forces on the belt. Installation deviations, belt defects, material handling conditions, equipment wear, and environmental interference are the five major root causes. In industrial production, it is necessary to abandon the extensive maintenance approach of "single-point fine-tuning" and establish a full-process operation and maintenance system based on "root cause tracing, targeted correction, routine prevention, and intelligent optimization." By precisely identifying fault sources, implementing targeted correction solutions, strengthening daily operation and maintenance management, and optimizing equipment structures, the belt conveyor misalignment problem can be thoroughly resolved. This effectively improves the operational stability and conveying efficiency of belt conveyors, reduces equipment wear and downtime costs, and provides a solid guarantee for safe, efficient, and continuous operation of industrial production lines.
