Product Details
Specification:
Cover Physical and Mechanical Properties | |||
Item | Cover type and property | ||
H | D | L | |
Tensile strength (MPa≥) | 24 | 18 | 15 |
Elongation at breaking (%)≥ | 450 | 400 | 350 |
The changing rate for tensile strength and elongation at breaking after Aging test 70°C*168h (%) | ±25 | ±25 | ±25 |
Abrasion loss (mm3) | 120 | 100 | 200 |
Product Specifications | |||||||
Fabric structure | Fabric materials | NO. of fabric plies | Width mm | Length mm | Cover rubber thickness (mm) | ||
Warp | Weft | Top | Bottom | ||||

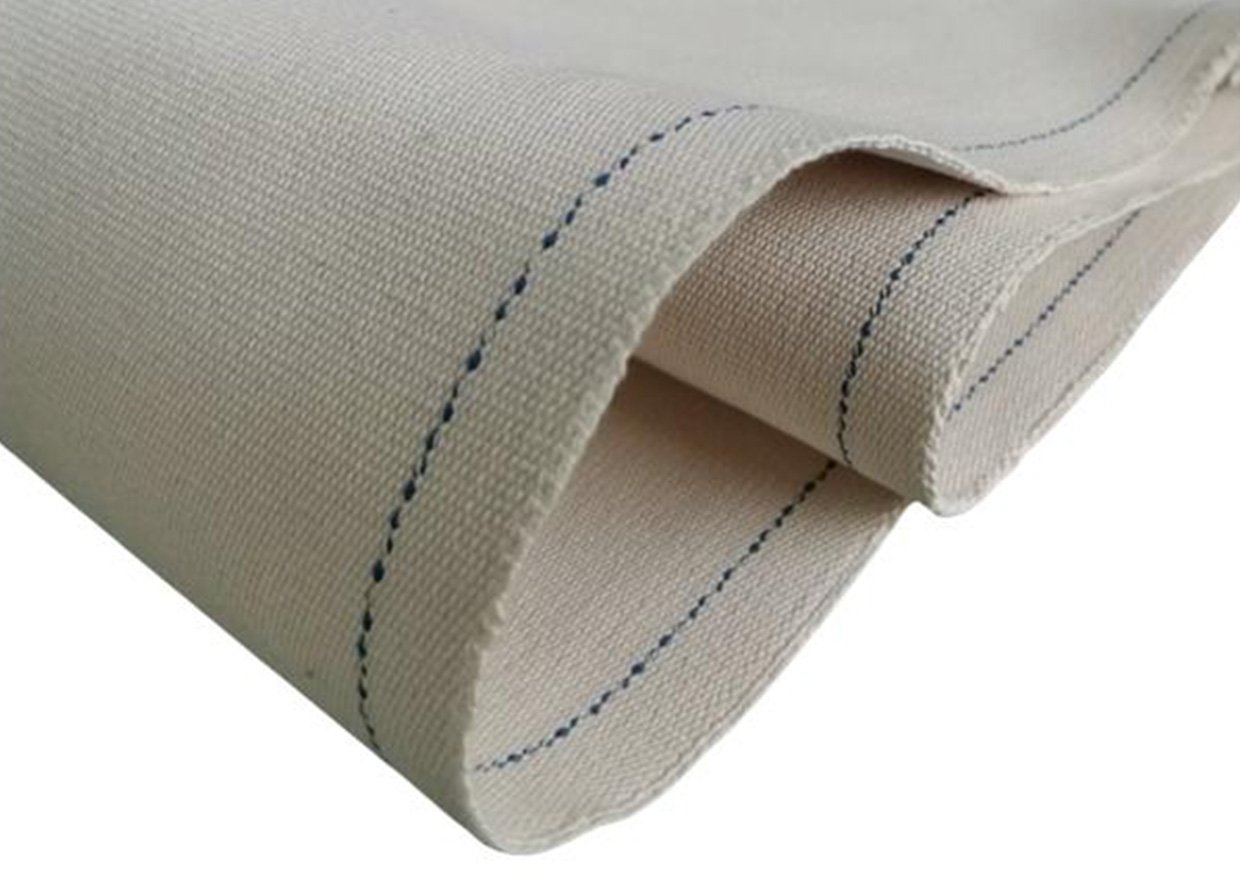

Cotton canvas | Cotton | Cotton | 3-12 | 300-2200 | 100000 | 3.0-6.0 | 1.5-4.5 |
Note: Band length can be determined according to user requirements | |||||||
