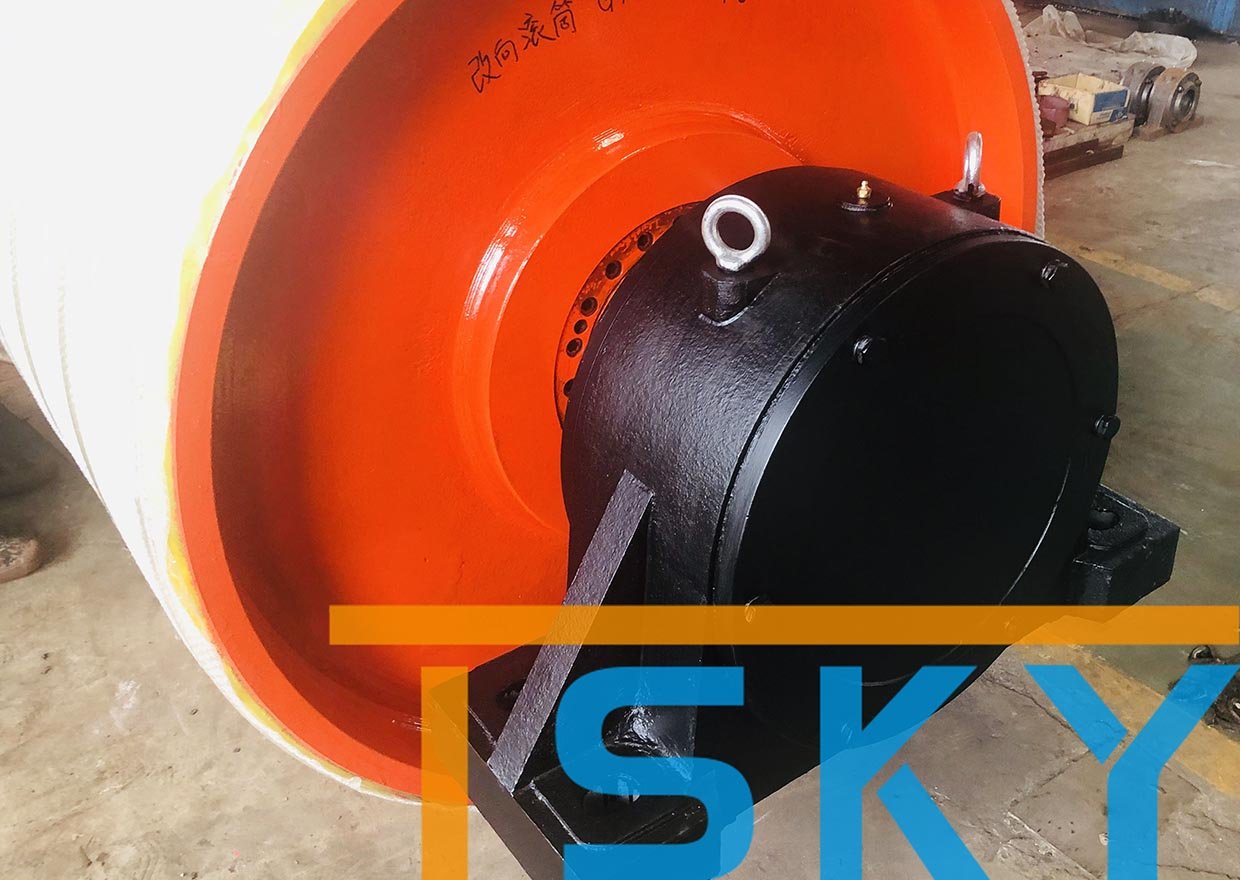

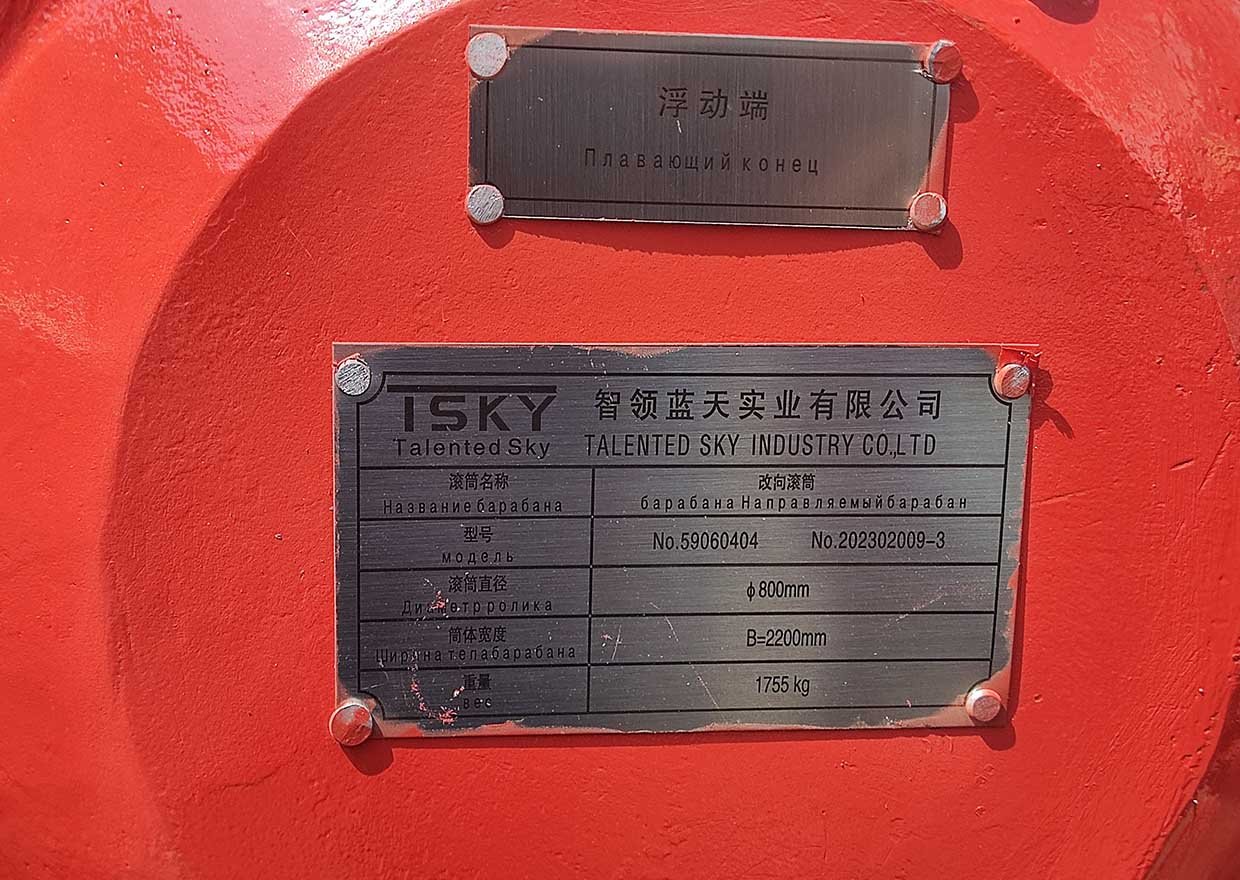

Product Details
Features:
Direction Change & Tension Control – Adjusts belt path and maintains proper tension to prevent slippage.

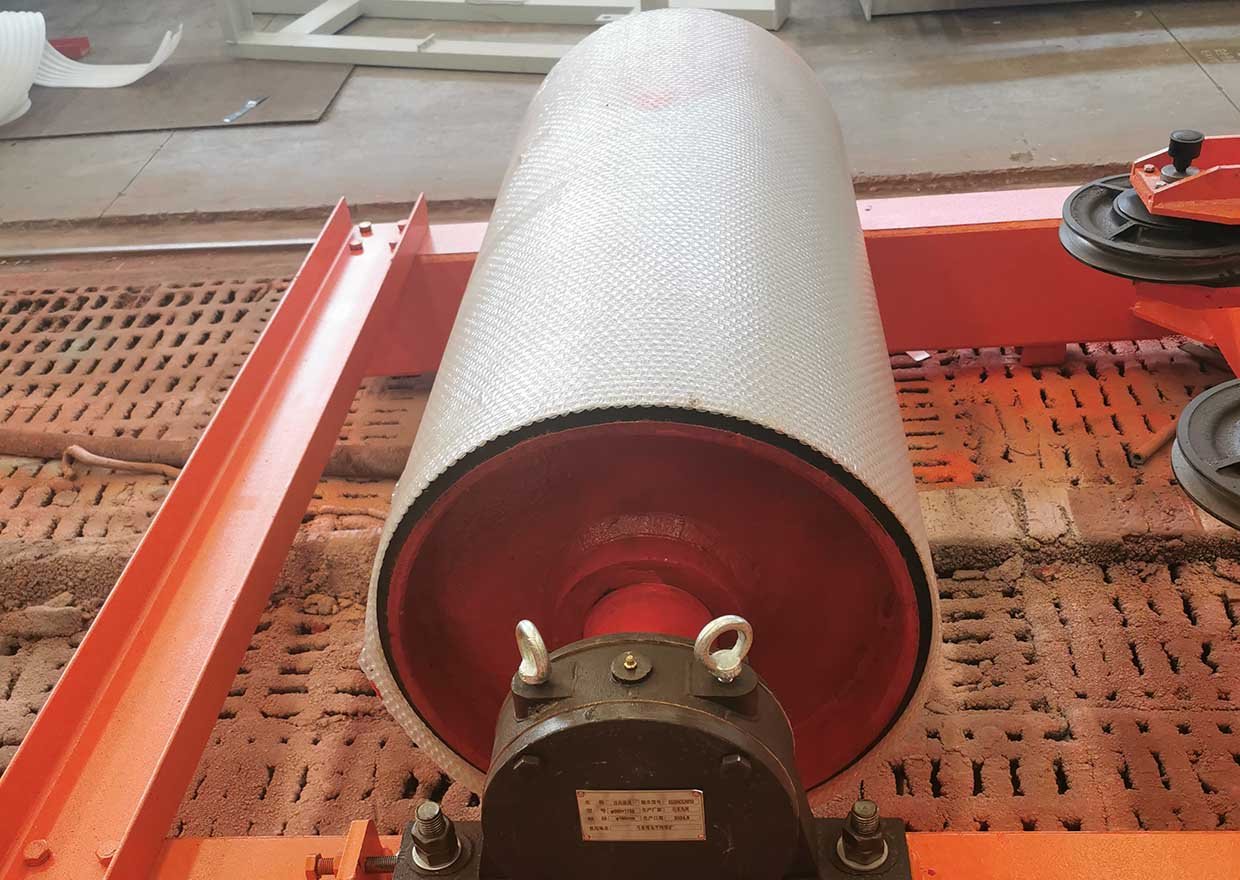

High-Traction Surface – Often lagged (rubber or ceramic-coated) to enhance grip and reduce wear.
Durable Construction – Made from heavy-duty steel, reinforced coatings, or stainless steel for extended service life.
Balanced Design – Precision-engineered to minimize vibration and belt misalignment, ensuring smooth operation.
Low Maintenance – Designed for reliability in harsh environments, reducing downtime.
Applications:
Mining & Bulk Handling – Used in high-capacity material transport systems to guide long-distance conveyor belts.
Cement & Steel Industries – Supports heavy-duty operations with high-tension belt systems.
Food Processing & Packaging – Features hygienic, corrosion-resistant designs for sanitary environments.
Logistics & Warehousing – Ensures smooth belt redirection in automated sorting and distribution systems.

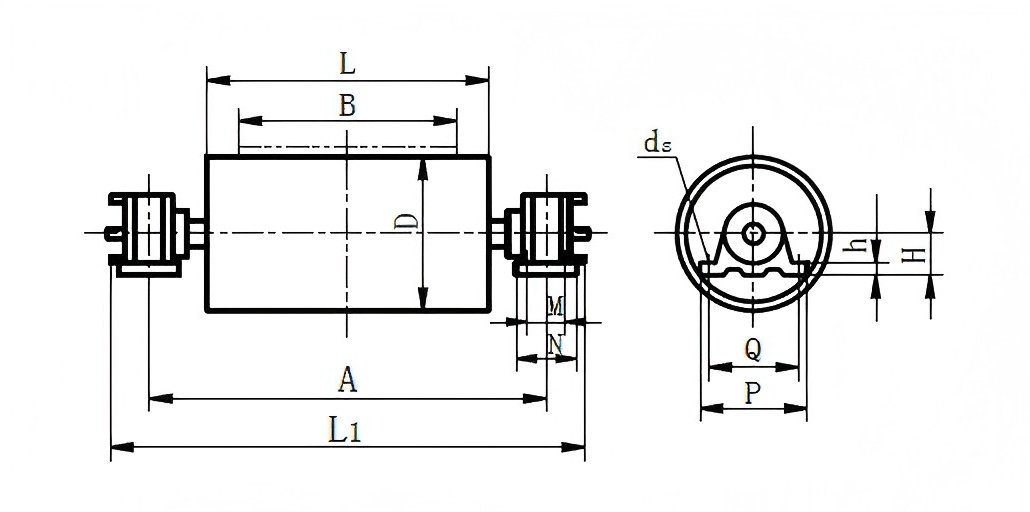

| B | D | A | L | L₁ | Q | P | H | h | M | N | ds | rolling bearing model | Weight(Kg) | Figure number |
| 500 | 320 | 800 | 600 | 902 | 260 | 320 | 90 | 33 | 70 | — | 22 | 1310 | 93 | TD1B1 |
| 400 | 104 | TD1B2 | ||||||||||||
| 650 | 320 | 960 | 750 | 1062 | 260 | 320 | 90 | 33 | 70 | — | 22 | 1310 | 104 | TD2B1 |
| 400 | 280 | 340 | 100 | 27 | 1312 | 132 | TD2B2 | |||||||
| 500 | 155 | TD2B3 | ||||||||||||
| 800 | 320 | 1180 | 950 | 1282 | 280 | 340 | 100 | 33 | 70 | — | 27 | 1312 | 134 | TD3B1 |
| 400 | 1292 | 350 | 410 | 120 | 90 | 1316 | 211 | TD3B2 | ||||||
| 500 | 237 | TD3B3 | ||||||||||||
| 630 | 268 | TD3B4 | ||||||||||||
| 1000 | 400 | 1410 | 1150 | 1212 | 280 | 340 | 100 | 33 | 70 | — | 27 | 1312 | 191 | TD4B2 |
| 500 | 1522 | 350 | 410 | 120 | 90 | 1316 | 319 | TD4B3 | ||||||
| 630 | 367 | TD4B4 | ||||||||||||
| 800 | 444 | TD4B5 | ||||||||||||
| 1200 | 400 | 1660 | 1400 | 1762 | 280 | 340 | 100 | 33 | 70 | — | 27 | 1312 | 235 | TD5B2 |
| 500 | 1790 | 380 | 460 | 140 | 130 | 80 | 3520 | 418 | TD5B3 | |||||
| 630 | 473 | TD5B4 | ||||||||||||
| 800 | 559 | TD5B5 | ||||||||||||
| 1000 | 659 | TD5B6 | ||||||||||||
| 1400 | 400 | 1860 | 1600 | 1962 | 280 | 340 | 100 | 33 | 70 | — | 27 | 1312 | 259 | TD6B2 |
| 500 | 1990 | 380 | 460 | 140 | 130 | 80 | 3520 | 454 | TD6B3 | |||||
| 630 | 514 | TD6B4 | ||||||||||||
| 800 | 606 | TD6B5 | ||||||||||||
| 1000 | 792 | TD6B6 | ||||||||||||
| 1250 | 995 | TD6B7 |
| Belt Widtch | Transmission Diameter | ≈180° Tail Bend Pulley Diameter | ≈180° Head Probe Pulley Diameter | ≈90° Bend Pulley Diameter | <45° Bend Pulley Diameter |
| 500 | 500 | 400 | 500 | 315 | 250 |
| 650 | 500 | 400 | 500 | 315 | 250 |
| 630 | 500 | 630 | 400 | 315 | |
| 800 | 500 | 400 | 500 | 315 | 250 |
| 630 | 500 | 630 | 400 | 315 | |
| 800 | 630 | 800 | 500 | 400 | |
| 1000 | 800 | 1000 | 630 | 500 | |
| 1000 | 630 | 500 | 630 | 400 | 315 |
| 800 | 630 | 800 | 500 | 400 | |
| 1000 | 800 | 1000 | 630 | 500 | |
| 1200 | 630 | 500 | 630 | 400 | 315 |
| 800 | 630 | 800 | 500 | 400 | |
| 1000 | 800 | 1000 | 630 | 500 | |
| 1400 | 800 | 630 | 800 | 500 | 400 |
| 1000 | 800 | 1000 | 630 | 500 |
