Product Details
Key Features:

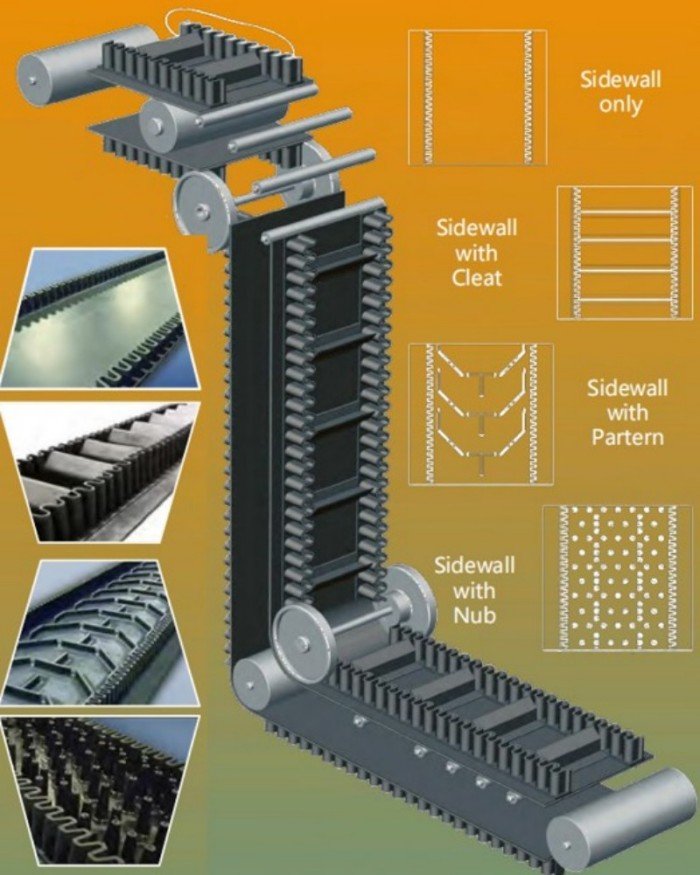

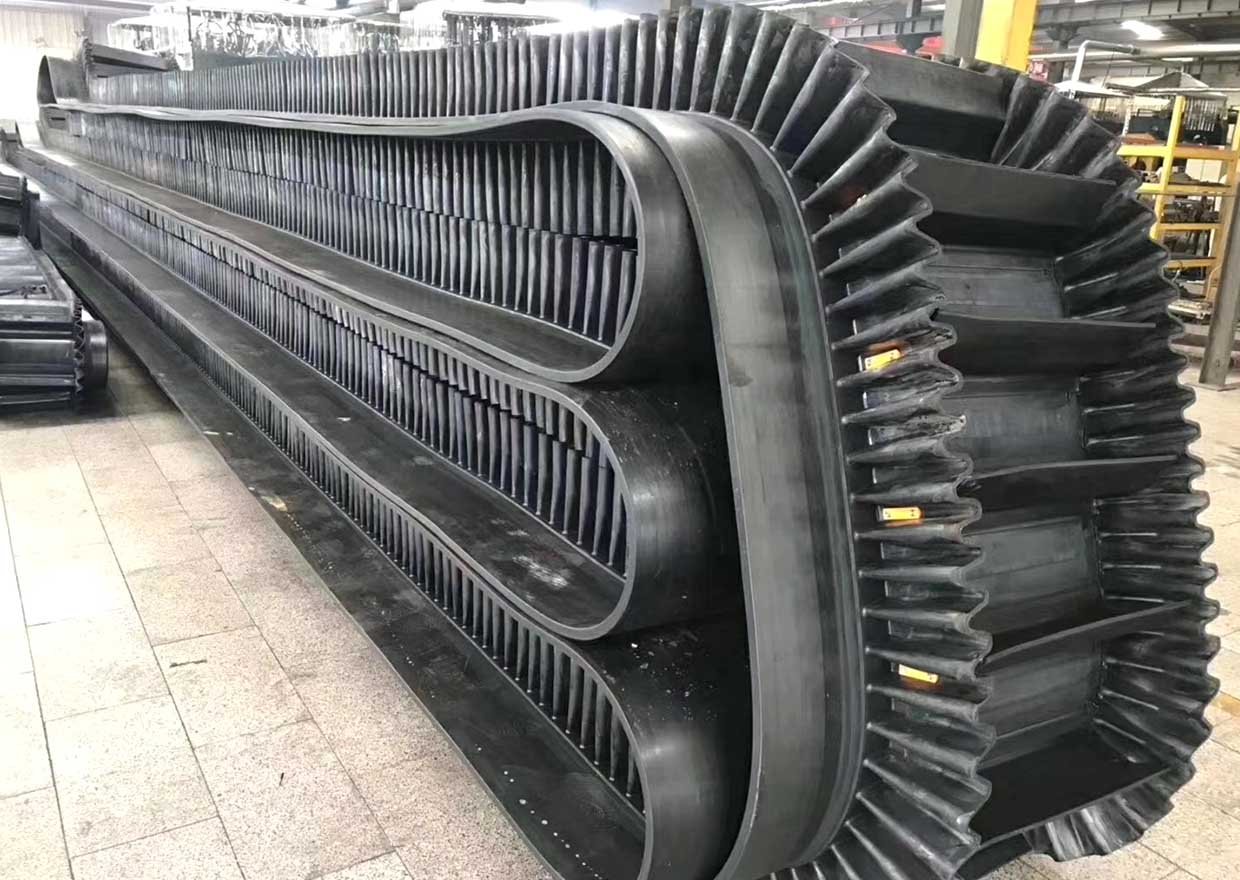

Steep and Vertical Conveying
High Load Capacity
Reduced Material Spillage
Compact Design
Versatility in Material Handling
Durability and Wear Resistance

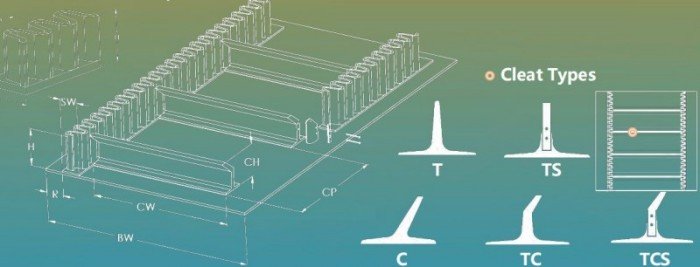

Belt Width (mm) | Height of Sidewall (mm) | Width of Sidewall (mm) | Pitch (mm) | Sidewall Covered Factor (m²/m) | Cleat Height (mm) | Cleat Covered Factor (m²/m) | Cleat Width (mm) | Belt Conveying Capacity (m³/h) | Max. Material Size (mm) | Min. Pulley Diameter (mm) |
500 | 80 | 50 | 40/50 | 0.82 | C 75 | 1.29 | 500-2R | 11-84 | 50 | 200 |
100 | 50 | 40/50 | 1.42 | C/TC 90 | 1.56/1.34 | 55 | 280 | |||
120 | 50 | 50 | 1.69 | C/T/TC110 | 1.87/1.78/1.76 | 60 | 350 | |||
650 | 100 | 50 | 40/50 | 1.42 | C/TC 90 | 1.56/1.34 | 650-2R | 23-180 | 55 | 280 |
120 | 50 | 50 | 1.69 | C/T/TC110 | 1.87/1.78/1.76 | 60 | 350 | |||
160 | 75 | 60 | 2.68 | T/TC/TCS 145 | 2.32/2.36/4.58 | 80 | 400 | |||
800 | 120 | 50 | 50 | 1.69 | C/T/TC110 | 1.87/1.78/1.76 | 800-2R | 36-280 | 60 | 350 |
160 | 75 | 60 | 2.68 | T/TC/TCS 145 | 2.32/2.36/4.58 | 80 | 400 | |||
200 | 75 | 60 | 3.53 | TC/TCS 180 | 3.13/5.35 | 100 | 500 | |||
1000 | 160 | 75 | 60 | 2.68 | T/TC/TCS 145 | 2.32/2.36/4.58 | 1000-2R | 45-500 | 80 | 400 |
200 | 75 | 60 | 3.53 | TC/TCS 180 | 3.13/5.35 | 100 | 500 | |||
240 | 75 | 60 | 5.15 | TCS 220 | 6.28 | 140 | 610 | |||
1200 | 160 | 75 | 60 | 2.68 | T/TC/TCS 145 | 2.32/2.36/4.58 | 1200-2R | 57-800 | 80 | 400 |
200 | 75 | 60 | 3.53 | TC/TCS 180 | 3.13/5.35 | 100 | 500 | |||
240 | 75 | 60 | 5.15 | TCS 220 | 6.28 | 140 | 610 | |||
300 | 100 | 85 | 7.52 | TCS 280 | 9.27 | 180 | 915 | |||
1400 | 200 | 75 | 60 | 3.53 | TC/TCS 180 | 3.13/5.35 | 1400-2R | 73-1000 | 100 | 500 |
240 | 75 | 60 | 5.15 | TCS 220 | 6.28 | 140 | 610 | |||
300 | 100 | 85 | 7.52 | TCS 280 | 9.27 | 180 | 915 | |||
400 | 100 | 85 | 10.67 | TCS 360 | 14.45 | 250 | 915 | |||
Angle of Inclination: 0°-90° | ||||||||||
