Product Details
Features:
It uses nylon canvas as carcass, and its structure is the same as that of General-used Conveyor Belt.
The thin belt has the advantages of high tensile strength fatigue resistance, impact resistance, excellent troughability and longservice life etc.
Pattern:
Besides of General-used Nylon Belt, there are oil resistant, acid and alkali resistant, cold resistant and antistatic electricity kinds of it etc.

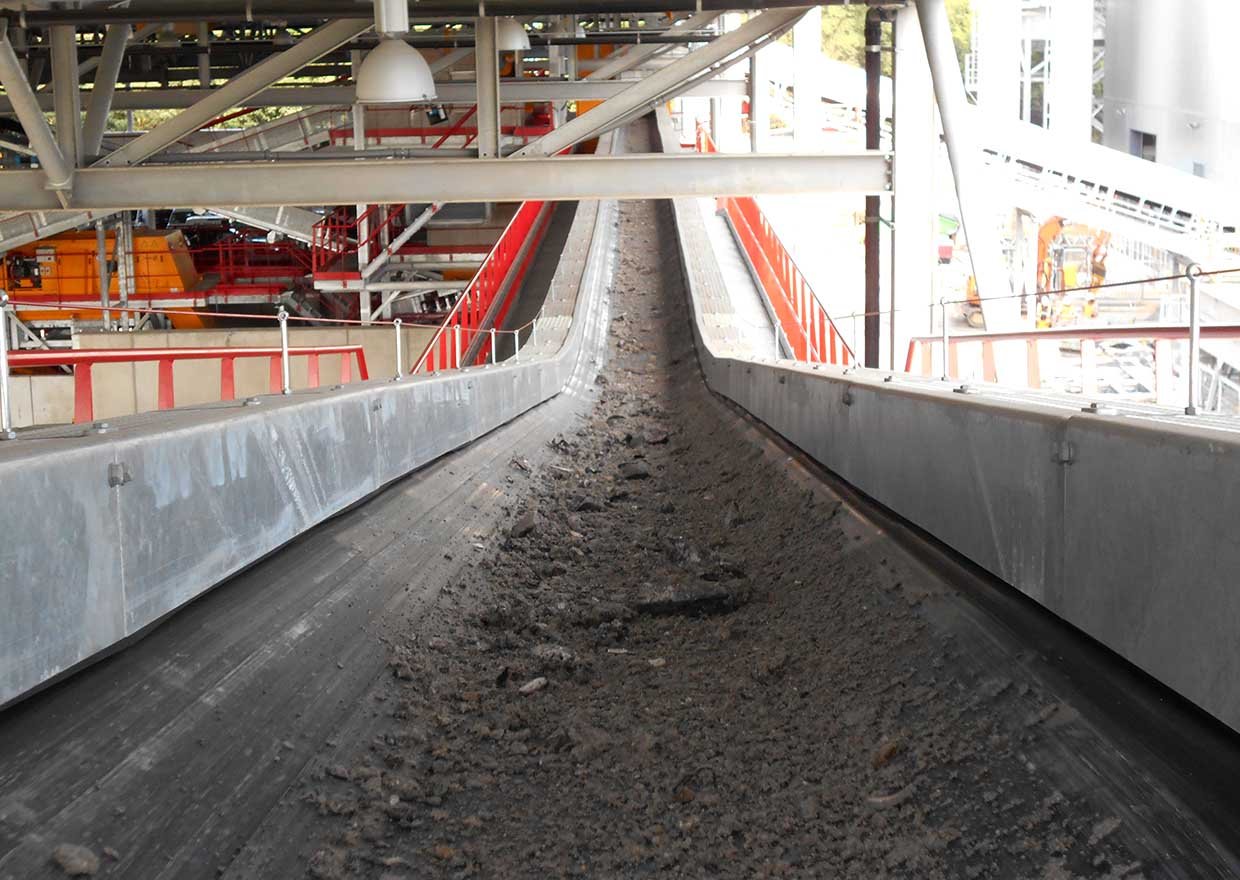

Use: It is widely used in long-distance, and heavy-load conveying occasions.
Adhesion strength between Layers | |||
Item | Between fabric | Cover Between | |
Cover thickness (0.5-1.5mm) | Cover thickness (>1.5mm) | ||
Ave of all test pieces (N/mm, ≥) | 4.5 | 3.2 | 3.5 |
Peak Min. of all test pieces (N/mm, ≥) | 3.9 | 2.4 | 2.9 |
Note: Peak Max. of all test pieces≤20N/mm | |||
Specification:
Fabric Materials | Fabric Structure | Fabric Code | No. of Fabric Ply | Width (mm) | Cover Rubber Thickness (mm) | ||
Warp | Weft | Top Rubber Cover | Bottom Rubber Cover | ||||
Nylon Canvas | Nylon | Nylon | NN100 | 2-10 | 350-2200 | 3.0-6.0 | 1.5-3.0 |
NN150 | 2-10 | 350-2200 | 3.0-6.0 | 1.5-3.0 | |||
NN200 | 2-10 | 350-2200 | 3.0-6.0 | 1.5-3.0 | |||
NN250 | 2-10 | 350-2200 | 3.0-6.0 | 1.5-3.0 | |||
NN300 | 2-6 | 350-2200 | 3.0-6.0 | 1.5-3.0 | |||
NN400 | 2-6 | 350-2200 | 3.0-6.0 | 1.5-3.0 | |||
NN500 | 2-5 | 350-2200 | 3.0-6.0 | 1.5-3.0 | |||
NN600 | 2-4 | 350-2200 | 3.0-6.0 | 1.5-3.0 | |||
Note: On the basis of consumer’s demand, we can adopt standards of JISK6322, DIN22102, BS490 etc. | |||||||
