Product Details
Key Features :
High Tensile Strength: The polyester warp offers high tensile strength, making the belt capable of handling heavy loads and long-distance conveying.
Excellent Flexibility: The polyamide weft provides excellent flexibility, allowing the belt to conform to the contours of the conveyor system and reducing the risk of damage from bending.
Low Elongation: EP belts have low elongation under load, ensuring stable operation and minimal stretching over time, which helps maintain consistent belt tension and tracking.

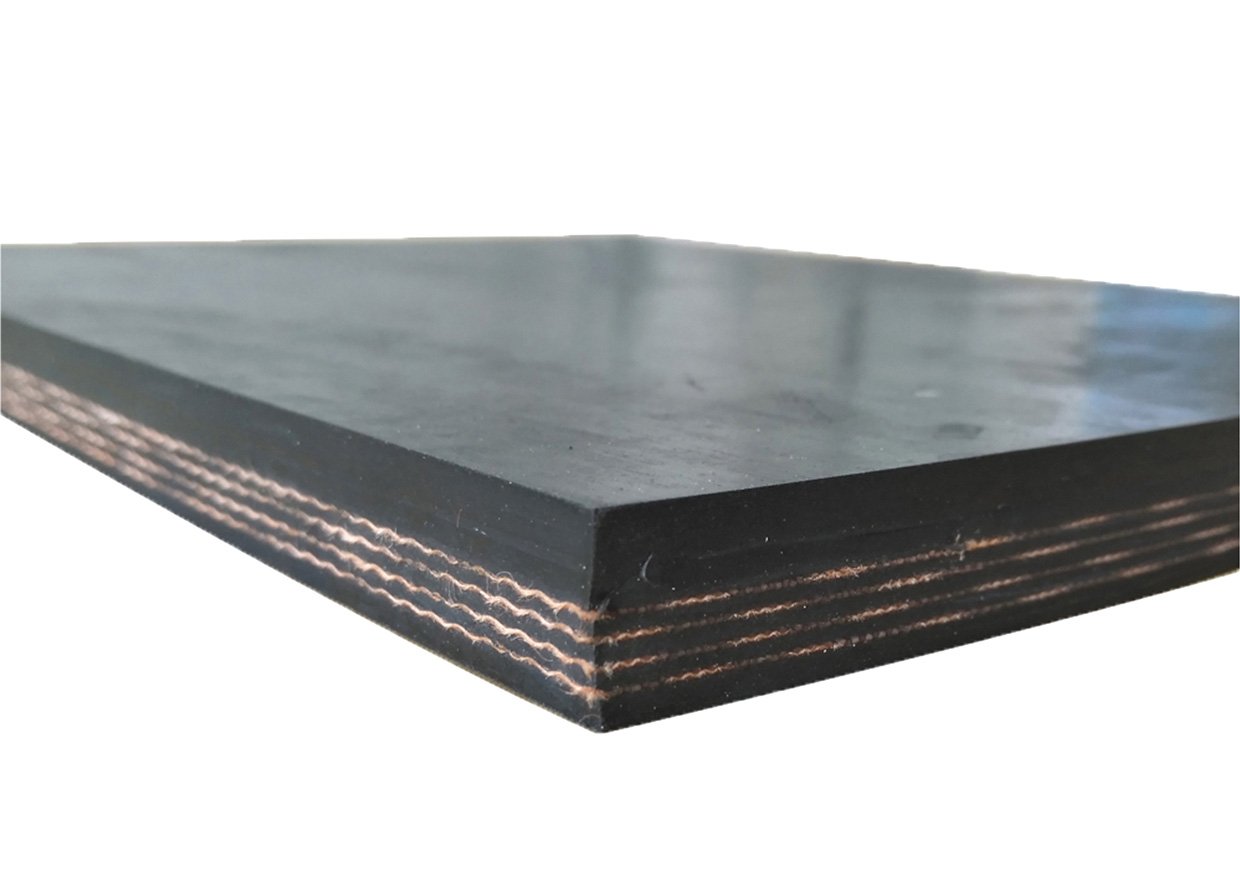

Good Impact Resistance:The multi-ply construction of EP belts provides good impact resistance, making them suitable for applications where heavy or sharp materials are conveyed.
Resistance to Moisture and Chemicals:EP belts are resistant to moisture and many chemicals, making them suitable for use in environments where exposure to water or corrosive substances is a concern.
Wide Range of Applications:EP conveyor belts are versatile and can be used in a variety of industries, including mining, cement, agriculture, and manufacturing.
Specification:
Fabric Materials | Fabric Structure | Fabric code | No. of Layer | Width(mm) | Cover Rubber Thickness(mm) | ||
Wrap | Weft | Top Cover | Bottom Cover | ||||
Polyester Canvas | Polyester | Nylon | EP100 | 2-10 | 350-2200 | 3-6 | 1.5-3 |
EP150 | 2-10 | 350-2200 | 3-6 | 1.5-3 | |||
EP200 | 2-10 | 350-2200 | 3-6 | 1.5-3 | |||
EP250 | 2-10 | 350-2200 | 3-6 | 1.5-3 | |||
EP300 | 2-6 | 350-2200 | 3-6 | 1.5-3 | |||
EP400 | 2-6 | 350-2200 | 3-6 | 1.5-3 | |||
EP500 | 2-6 | 350-2200 | 3-6 | 1.5-3 | |||
EP600 | 2-4 | 350-2200 | 3-6 | 1.5-3 | |||
