Product Details
Features:

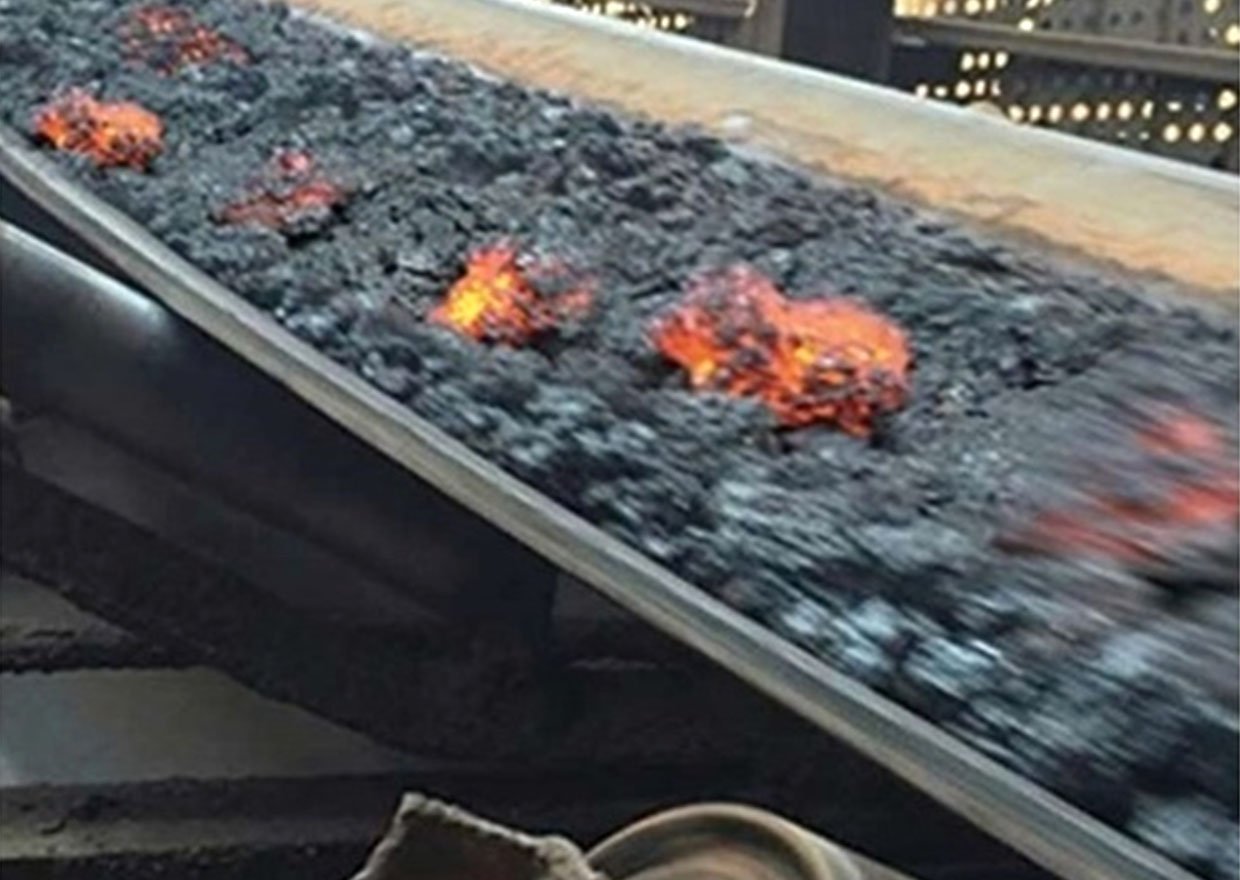

Heat-Insulation Charring Layer: The belt features a unique compound formula that forms a heat-insulating charring layer on its surface when transporting high-temperature materials.
Reinforced Structure: A high-modulus, low-shrinkage polyester canvas (D.S. EP or EG canvas) is used near the working surface, covered with a special heat-insulation layer for enhanced durability.
Superior Adhesion: An advanced skim formula ensures strong adhesion between fabric layers under high temperatures, preventing bubbling and ensuring stability and a long service life.
High-Temperature Resistance: The belt can handle materials ranging from 200°C to 600°C, with peak temperatures up to 800°C, and operates reliably between 250°C and 350°C.
Flame Resistance: It offers short-term flame resistance and resists rubber decomposition at high temperatures.
Applications:

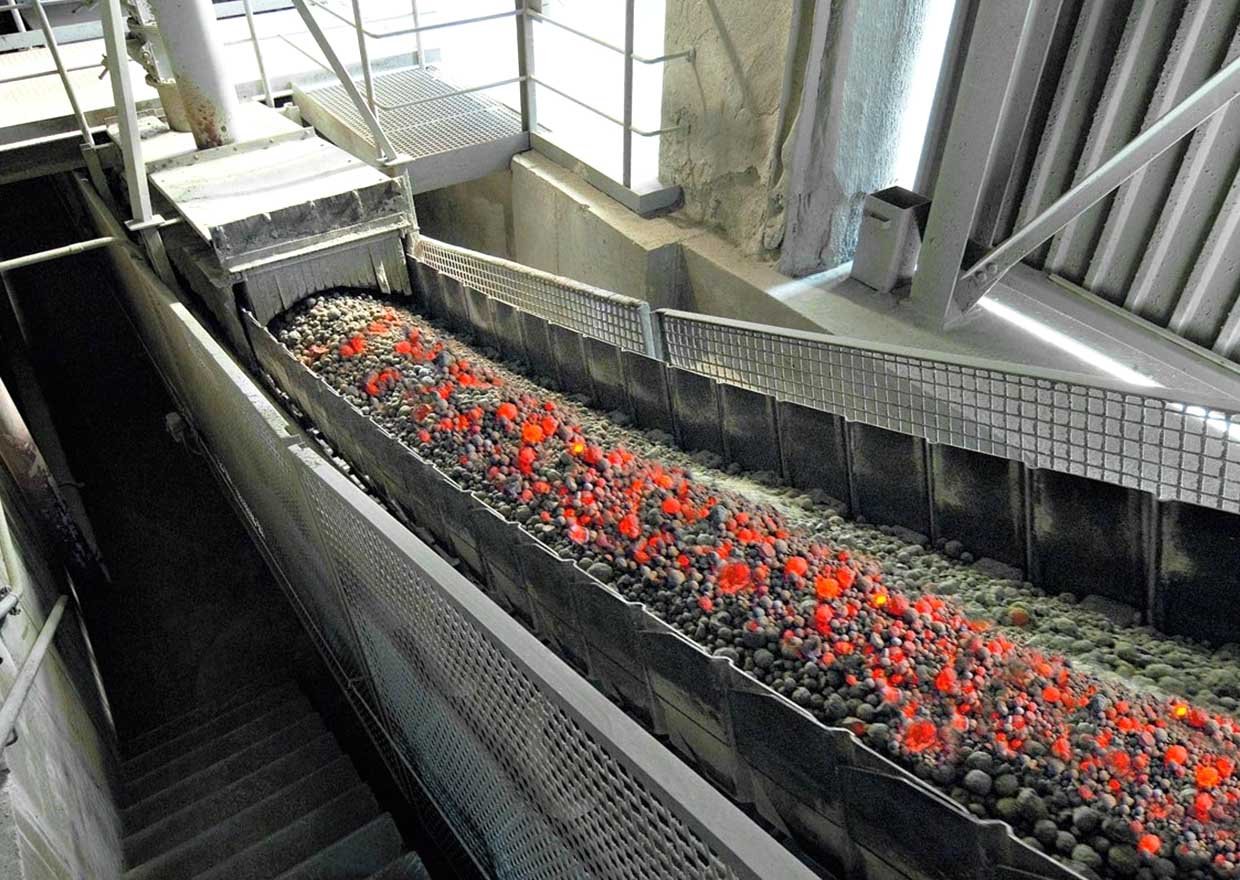

Cement & Steel Plants (handling hot clinker, slag, or molten materials)
Mining & Power Plants (transporting coal, ash, or hot ores)
Glass Manufacturing (moving hot glass products)
Chemical & Petrochemical Industries (fire-prone environments)
Foundries & Metal Processing (high-temperature material handling)
Product specifications | |||||||
Fabric structure | Fabric materials | No. of fabric plies | Width (mm) | Length (mm) | Cover Rubber Thickness (mm) | ||
Warp | Weft | Top | Bottom | ||||
Cotton / Nylon /Polyester Canvas | Canvas | Canvas | 3-12 | 300-2200 | 100000 | 4.5-9.0 | 1.5-3.0 |
Note: Belt length can be determined according to customers' requirements | |||||||
